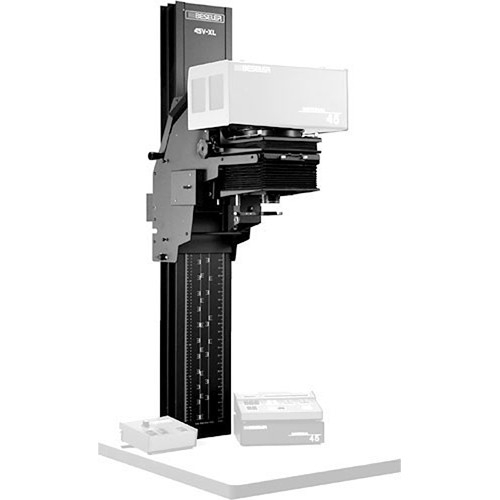

Beseler 45V-XL Enlarger - Motorized Chassis Only

Note: Does not include light source, lens, lensboard & negative carrier.

The Beseler 45V-XL motorized chassis is identical to the Beseler #8545-02 enlarger chassis except that the #8546 model comes with factory installed, remotely controlled, focusing and elevation/image size adjustment.

The Beseler 45V-XL is the finest enlarger that Beseler has ever made. It is a solid, reliable, and functionally superb productivity tool. All operating controls are right where they should be, resulting in less wasted time and effort.

Its simple, well thought out design, meticulous fabrication from the best materials, precision assembly, and attention paid to small details such as final step laser alignment by a skilled technician, assures that it will always be a pleasure to work with a Beseler 45V-XL enlarger.

The massive true vertical column, along with a perfectly aligned projection assembly, film stage and lens stage, results in an image in which the center and all four corners are in simultaneous sharp focus and in which the center of the projected image does not move, irrespective of the image magnification. The center remains stationary, even while increasing/decreasing the size of the projected image, so it is never necessary to move the easel in order to recenter the image from wallet size through larger than 24 x36" on the baseboard.

In terms of illumination, the 45V-XL accommodates the 45M Condenser Lightsource (8121) or the 45SL Dichro LED Color head (82782). Baseboard controlled, motorized Power Elevation and Power Focus modules can be bought separately, too.

The "V" in the product name is an acronym for Vertical, but it could also be indicative of its Versatility. It accepts all of Beseler's light sources, more than a dozen glass and glassless negative carriers, a host of lensboards, lens mounts, a three lens turret and a plethora of assorted accessories, plus accommodating a variety of third party condenser heads, colorheads, coldlights, V-C lightsources, film carriers, lens plates, etc. The 45V is Versatile.

Extra-long, twin E-channel, centerbraced vertical column

Chassis still requires the use of either Baseboard (8561) or Wall/Table Mount and a light source/head.

• Conforms to Title III, Section 302 of the Americans with Disabilities Act of 1990, in that focus and elevation/image size can be adjusted remotely while seated.
• Manual "Up/Down" control or via flexible shafts supplied with enlarger. Motorized chassis will come with factory installed:
  • Power elevation module(No.8567)
  • Power Focus Module(No.8569)
  • 45V System Controller(No.8568)
