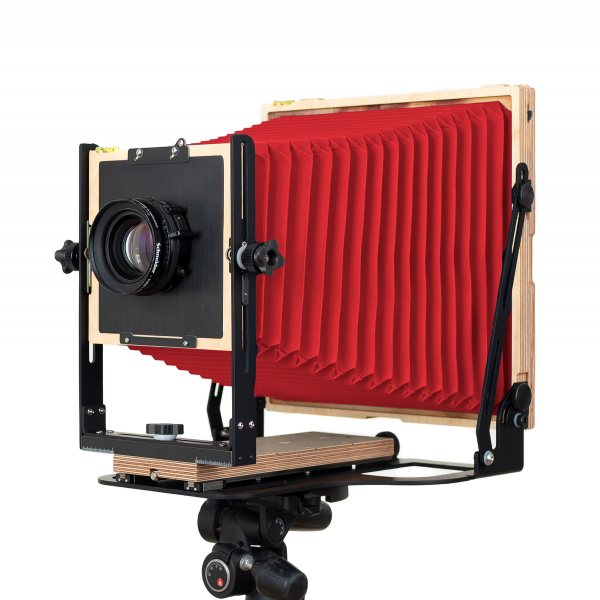

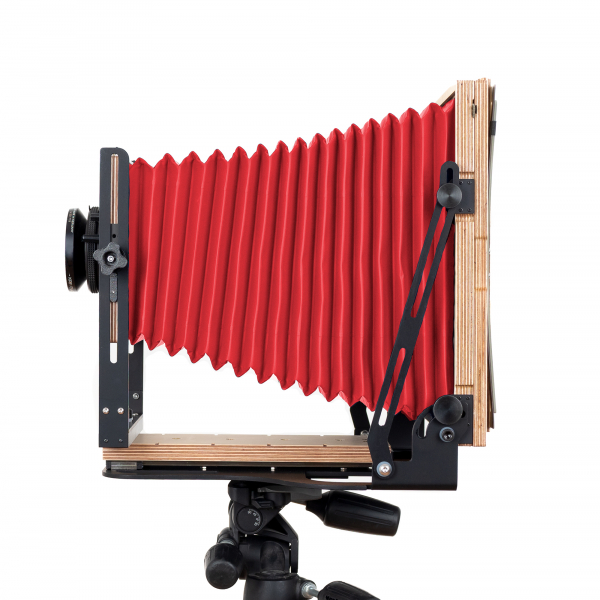

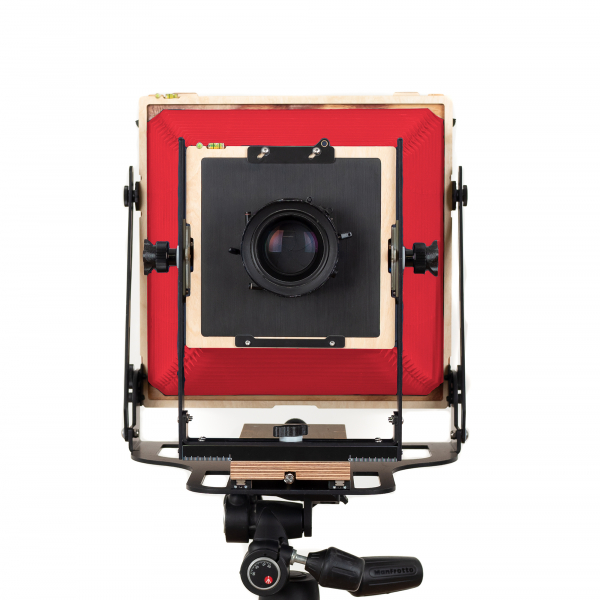

Intrepid 8x10 Film Camera - Red Bellows

  • $616.00
#310381
Low Stock
Stock availability shown for online orders. For stock at our Hollywood retail store please call 323-284-4321

Weighing just 2.8 kg  / 6.2 lbs. this is the lightest, most compact 8x10 film camera ever made. Now in its 3rd generation and by far their most refined and advanced. This model benefits from a range of new features including precise zeroing guides, lockable zeroing stops, a full range of movements, reinforced front standard controls and quick-to-use locks securing the rear standard.

Please note: Lens and fresnel not included.

Features

The front standard features a full range of independently controlled rise/fall, tilt, shift and swing movements. While the rear standard has a wide range of tilt both ways. There are guides on the front to give you complete precision, plus zeroing stops for total accuracy.

While being lightweight the camera is incredibly sturdy and secure when set up and locked down. The aluminum base and linear focus ensure maximum stability no matter how heavy a lens you use.

The focusing is rear-controlled making it quick to use when under a dark cloth, while the linear guides allow for pin-sharp focusing adjustments.

The rear standard is held securely in place with strong magnets and reinforced by 2 lockable clips on each side. Simply slide the clips up and you can remove the back for fast shifting between landscape and portrait.

The ground glass is super bright with a half-inch grid and we have an additional fresnel that can be fitted, particularly useful with wide-angle lenses.

You can use all standard copal shutter style 8x10 lenses from 180mm-550mm. You can also use lenses mounted on Intrepid 4x5 lens boards with the Intrepid lens board adapter.

When not in use the camera can be folded flat making it really easy to transport.

Materials

Intrepid manufactures and assembles all Intrepid Cameras in their workshop in Brighton, UK.

They use sustainably sourced furniture-grade birch plywood on the front and rear standards of the Intrepid 8x10, finished by hand with a wax/oil sealant to protect the wood.

The base and supporting parts of the camera are made from hard-coat black anodised aluminium. They 3D print the other supporting parts of the camera in-house using high-quality PETG.

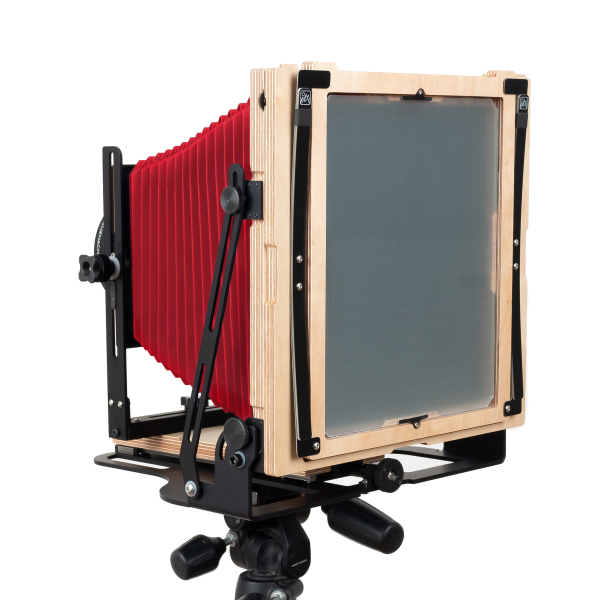

Intrepid ground glass screens are ground in the workshop to ensure they are super bright and clear then finished with a laser etched half-inch grid.

The bellows are waterproof, super-durable vinyl with a triple-layered lightproof lining, all hand-folded in our workshop. Intrepid 8x10 bellows are available in: black, blue, green or red.

Movements

  • Max Front Rise/Fall: +70mm / -60mm
  • Max Front Shift: +/- 30mm
  • Max Front Tilt: +/- 50º
  • Max Front Swing: +/- 50º
  • Rear Tilt: - 35º / + 90º

Measurements

  • Folded: 295x295x75 mm
  • Weight: 2.8Kg / 6.2lb

Bellows

  • Max bellows extension: 550mm
  • Min bellows extension: 100mm

Ground glass

  • High-quality ground glass screen with a 1/2” grid included
  • Fresnel screen available separately

Tripod

  • Tripod mount 1/4” and 3/8” (compatible with all standard tripods)

Lens

  • Designed to take Intrepid 8x10 lens boards (140mm x 140mm)
  • Compatible with most Sinar lens boards
  • 8x10 lenses from 180mm-550mm



EAN: 5065017196073
