Intrepid 4x5 Fresnel Screen

When paired with the Intrepid ground glass, the Intrepid Fresnel Screen will brighten the projected image to make focusing easier, especially when using wide angle lenses.

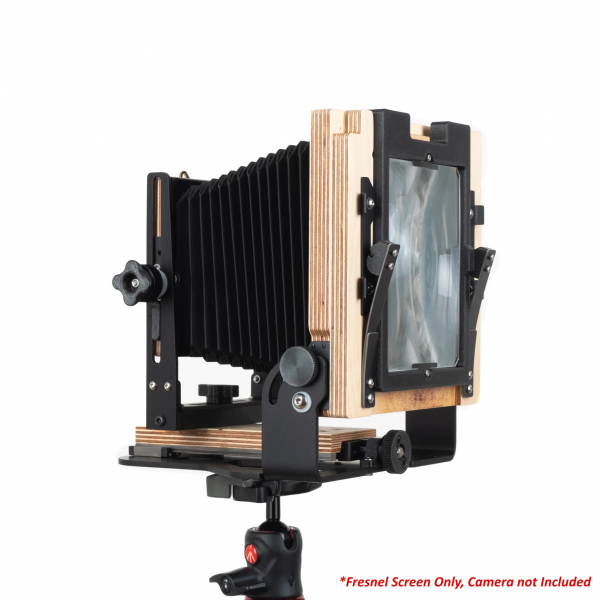

On all Intrepid Cameras, the correct way to mount a Fresnel screen is on top of the ground glass, between yourself and the glass.

Steps to attached Fresnel screen:

1. Clean the Ground glass (focusing glass) at rear of camera to remove all dirt and dust
2. Use a screwdriver to remove one of the metal clamps holding the Ground Glass
3. Loosen, but do not remove the other metal clamp.
4. Remove the protective film from both sides of the Fresnel Screen.
5. Place Fresnel screen TEXTURED SIDE DOWN, under the loosened clip onto the Ground Glass
6. Tighten/re-attach both metal clips
