How to Make Digital Negatives

By: Christina Z. Anderson

by Ron Reeder and Christina Z. Anderson
Excerpt from Gum Printing and Other Amazing Contact Printing Processes
© Christina Z. Anderson 2013, all rights reserved.

Following is a relatively simple three step method for making digital negatives. With some of the more forgiving processes like gum and casein, only the first two steps may be necessary. The system is based on the Epson printer that uses Ultrachrome ink sets and comes with the Advanced Black & White System installed in the driver. The best transparency film substrates are made by Arista, Ink Press, or Pictorico; have some on hand. Capture the image in camera either RAW or TIFF at the largest file size possible. Also, keep or convert the image to 16 bit depth and Adobe RGB (1998) or its grayscale equivalent, gamma 2.2.

Three-step negative workflow

  1. Determine the Basic Exposure Time for the photo process to be used to give maximum black.
  2. Determine overall negative contrast to match the contrast of the process and give “paper white.”
  3. Make midtone adjustments to match the response curve of the process.
Download Step Wedge Photoshop file

Step 1: Determining basic exposure time

The aim is to determine the minimum UV exposure needed to obtain maximum black when printing through the transparency material on which the negative is printed.

  1. Coat a half-sheet of paper with the light sensitive emulsion of choice.
  2. Place a sheet of transparency material on top to cover half of the paper.
  3. Place a sheet of opaque material so it covers both halves and leaves a strip exposed at the top.
  4. Make an exposure (maybe one minute).
  5. Move the opaque material down to uncover another strip and make another exposure.
  6. Continue this process until there is a series of increasing exposures extending across the junction between transparency material and no material.
  7. Develop the test sheet and dry it. Notice that on strips that received short exposures the boundary between transparency material and none can easily be seen. The goal is to find the exposure where this boundary becomes invisible. This is the minimum exposure that is capable of giving maximum black through the transparency material (or some other hue, e.g. maximum blue with cyanotype). Once the Basic Exposure is determined for that process on that paper it does not change. If a final print turns out to be too light or dark, this is an indication of another problem in the workflow.

Step 2: Negative contrast

The second step in making a digital negative is to adjust the overall contrast of the negative to match the contrast range of the emulsion. For example, a palladium emulsion requires a negative with rather high contrast (more ink). A gum emulsion requires a negative with fairly low contrast (less ink). The way this adjustment is done is by controlling the maximum amount of ink the printer lays down. There are two sliders that can be used to adjust the printer’s ink limit. The first is in the Advanced Black & White dialog of the driver. It is called the Max OD slider (Figure D). Its default setting is 0 and we will leave it at that setting.

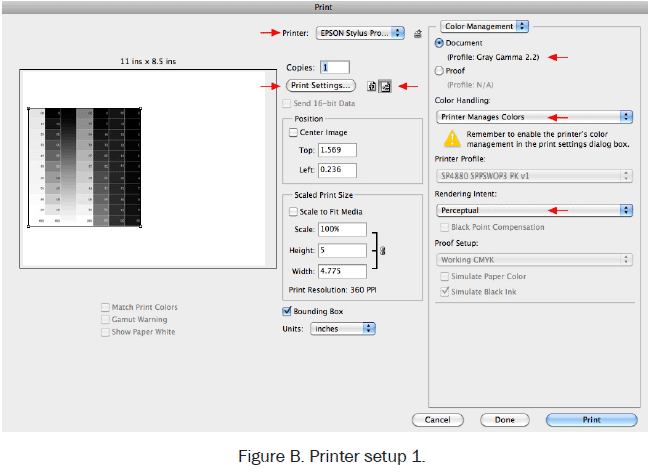

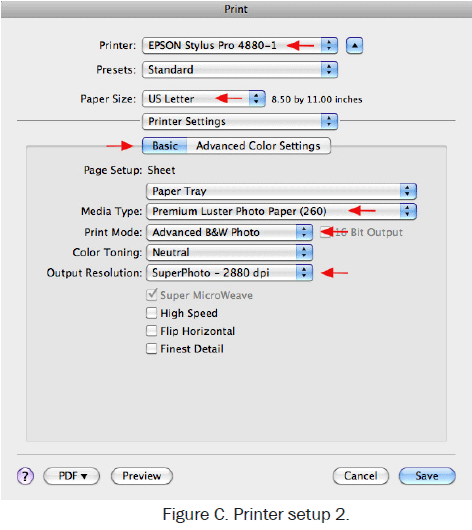

Figure A, Figure B, Printer Setup #1 Figure C, Printer Setup #2

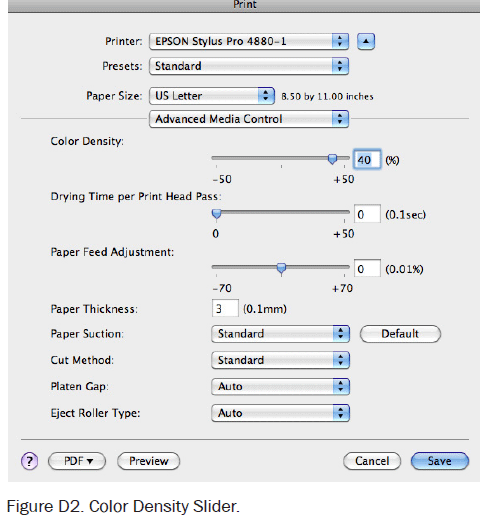

The second slider is called the Color Density slider (Figure D2) and it is found by clicking on Printer Settings (see Figure C) and opening the Advanced Media Control dialog. The Default setting for the Color Density slider is 0 and this yields a relatively low contrast negative suitable for gum or cyanotype. Moving the slider towards +50% yields higher contrast negatives suitable for palladium or salt prints. Here is the workflow to determine the correct negative contrast to match the photo process.

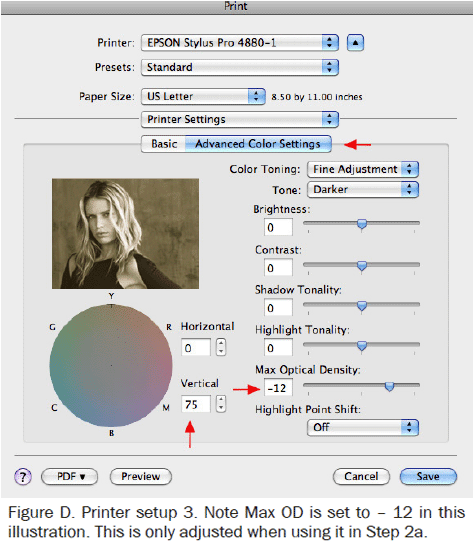

Figure D, Printer Setup #3 Figure D2, Color Density Slider

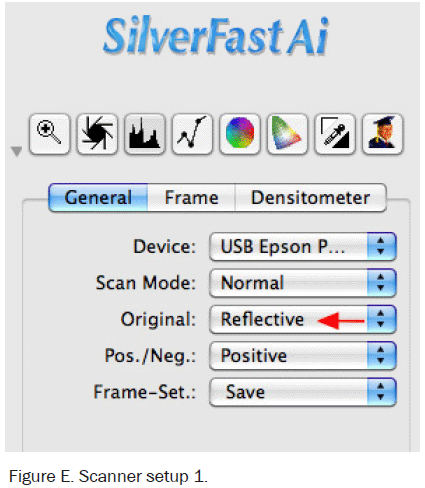

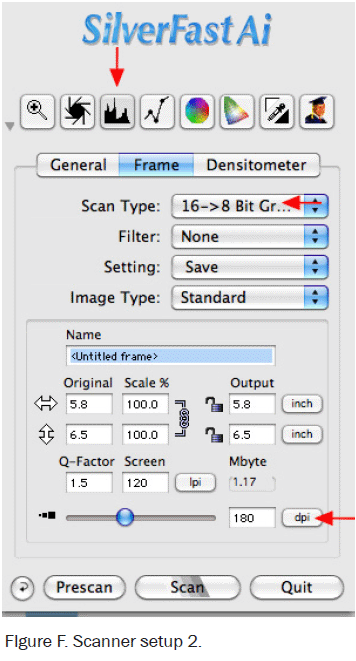

Figure E, Scanner Setup #1 Figure F, Scanner Setup #2

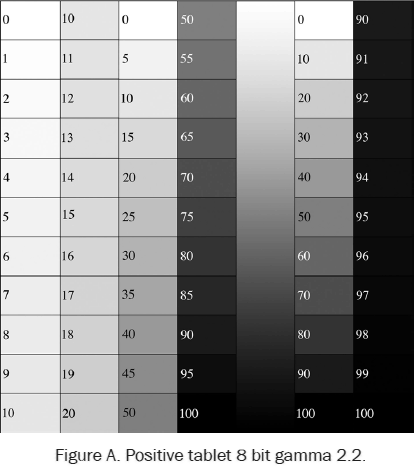

  1. Download the free Step Tablet image file at Open the file in Photoshop. An image of this step tablet is shown in Figure A.
  2. Flip the tablet image horizontally (Image/Image Rotation/Flip Horizontal) and then invert to a negative (Image/Adjustments/Invert). Flipping the image ensures that left and right handedness will remain correct when the ink side of the negative is placed against the emulsion side of the paper during print exposure.
  3. The following instructions are specifically for a Mac computer running Photoshop CS6 with an Epson 4880 printer. However they also apply to CS5 and essentially any Epson printer that uses the Advanced B&W system.
  4. Go to File/Print. The dialog window that will open is shown in Figure B. In the dialog box:
    1. Select the printer, Epson Stylus 4880.
    2. On the right side, under Color Management, check the button beside Document. Presumably it will say Profile Gray Gamma 2.2 since that is the profile that should have been embedded in the image file at the very start of this workflow. If it says anything else, go to the bottom, hit Cancel, bail out, go back and convert the image to gamma 2.2, and start the print process all over again (sob). If gamma 2.2 shows, go down to Color Handling and select Printer Manages Colors.
    3. For Rendering Intent choose Perceptual (the default).
    4. Select either Landscape (horizontal) or Portrait (vertical) media orientation.
    5. Click on Print Settings. Another window will open (Figure C).
    6. Select the paper size (8½"x11").
    7. Click on Layout and scroll down to Printer Settings.
    8. Choose Paper Source (usually the paper tray).
    9. Choose Media Type: Premium Luster Photo Paper. This choice tells the printer to print with Photo Black Ink (as opposed to Matte Black Ink). Photo Black ink is a weaker UV absorber than Matte Black but it is strong enough for most processes.
    10. Under Print Mode select Advanced Black & White.
    11. Color toning, leave it at neutral.
    12. Output Resolution. Set at the maximum of 2880 dpi. This is important for obtaining the highest quality negatives.
    13. Turn OFF High Speed.
  5. With all these settings entered, go back up to the middle of the window and click on Advanced Color Settings. A window will open with an image of a blond woman off to one side and a bunch of various sliders (Figure D). Only change one thing in this window:
    1. Near the color circle is a box labeled Vertical. Type the number 75 into this box. This action causes the printer to throw the maximum amount of yellow ink into the image. Yellow is the strongest UV absorber after Photo Black. Increasing yellow makes the UV more dense and negatives more contrasty. Hit SAVE.
  6. Now go back to Print Settings, click on Layout, and on the drop down menu select Advanced Media Control. Move the Color Density slider to set the contrast of the negative (Figure D2). The default position of 0 is about right for gum and cyanotype while higher settings, in the +30-40% range, are needed for palladium or salt. Hit SAVE.
  7. Slide a sheet of transparency material into the paper tray, hit Print, and make a negative. Use a hair dryer to blow-dry the negative for a minute or two to get rid of all milkiness if the negative is to be used right away.
  8. Take the printed step tablet negative and use it to expose a sheet of paper coated with the photo emulsion, using the Basic Exposure Time determined in Step 1. When making the exposure, lay a small piece of opaque plastic so it slightly overlaps the 0% patches of the negative. Process and dry the step tablet print. The dark, 100% patches of the print should be as black as the process can manage since that is controlled by the Basic Exposure. Now look at the area under the opaque plastic. This area has been coated by emulsion chemistry but has received no exposure. This reference area is the lightest tone obtainable with this particular emulsion. If the correct negative contrast setting has been chosen (Color Density slider, remember?) the lightest, 0% patches of the print will be very close in tone to the tone of the reference area. If the 0% patch is noticeably grayer than the reference area, it is necessary to go through the process again but this time move the Color Density slider to the right a bit to increase contrast. On the other hand, if several of the lightest steps look as white as the reference area, contrast is too high and it is necessary to move the slider to the left. To streamline this process, make a series of step tablet negatives, one with the Color Density slider set at 0, another at +10%, 20%, 30%, and 40%. These varying contrasts will probably cover the entire range needed for most photo processes. When calibrating a new process, print a few and quickly determine which contrast setting will be necessary.

Step 2a: Advance media control

Another option for controlling negative contrast is to choose Enhanced Matte Paper as the Media option (instead of Luster Photo Paper). This choice will force the printer to use Matte Black ink which is a stronger UV absorber than Photo Black ink. When using Matte Black ink the Color Density slider is no longer needed. The entire range of contrasts needed for most photo processes can be obtained by changing the Max OD slider (in the Advanced Black and White dialog) from – 12 (low contrast) to 0 (very high contrast). Both Photo Black and Matte Black ink will produce good negatives. There is the option to use either one in case switching ink types is not desired. If making negatives for gum, casein, or cyanotype, use Photo Black ink and leave both sliders at their default positions.

Step 3: Midtone adjustments

To adjust image mid-tones a positive print of the step tablet shown in Figure A will be made, using a digital negative with its contrast adjusted for this particular photo process. This print is then measured to find out how far off the mid-tones may be, and with this information a correction curve is constructed to bring the midtones back into perfect linearity. Once constructed, this correction curve will be applied to the positive image file.

  1. Print a digital negative of the step tablet. Flip the image horizontally, invert to negative, and print it on transparency material using the described printer driver settings, including the Color Density slider setting that gives the correct overall negative contrast for the photo process.
  2. Expose this tablet negative to the photo emulsion using the Basic Exposure Time previously established.
  3. When making the exposure, be sure to place a small piece of opaque plastic to slightly overlap the lightest patches of the tablet (the 0% patches).
  4. Process and dry the tablet print.
  5. Scan the tablet print using a flatbed scanner set to Reflectance Mode. In the dialog box (Figure E) click on the General tab and under Original choose Reflective.
  6. Next, click on the Frame tab (Figure F).
    1. Scan Type. Choose 16/8bit grayscale (this is their way of saying that the scan will be in 8 bit depth).
    2. Set the resolution slider to 180dpi (low resolution is fine).
  7. Hit the Prescan button. The scanner will make a very low resolution scan of the entire glass. Move the guidelines to limit the final scan to just the step tablet.

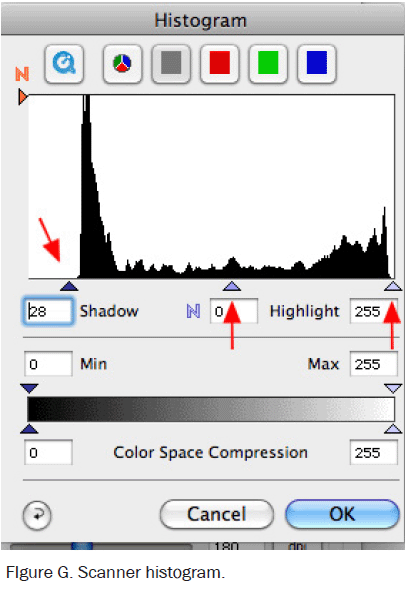

  8. Now go up and hit the histogram button at the top (third button from the left). This will open up a histogram of the step tablet prescan (Figure G). Move the shadow and highlight sliders so they are just outside of all the pixels (the dark stuff). Make sure the middle slider remains at 0. This will ensure that the scanner records all the information seen by the photo receptors and does not clip either the shadows or the highlights. Now go back to the main dialog box and hit Scan.
  9. The scanned image of the tablet print should open in Photoshop. Do the following things to this image:
  10. In Photoshop, go to the Windows menu, scroll down, and click on Info. The Info palette will open. In the upper right corner click on a small stack of lines that open the Panel Options window. For the First Color Readout select Grayscale. Close Panel Options but leave the Info Palette open. Now go to the Tool Bar, select the Eyedropper tool and in the tool options bar set the Eyedropper to measure an 11×11 pixel area (this further evens out the readings).
  11. Take a sheet of paper and write two column headings on it, Input and Output. Values in the Input column will be taken from the numbers written on individual steps of the step tablet. Values in the Output column will be numbers read from the adjusted scan image of the step tablet print, measured with the Eyedropper tool. If the contrast selected via the Color Density slider for the step tablet negative is nearly correct the first number pair may read Input 0, Output 1. It is nearly impossible to get the Output from the 0% step to actually read 0 without also raising contrast too high and clipping some of the high values. So I usually accept an Output reading of 1% as just fine. Hopefully the Output reading from the 5% step will be above 1% (5% would be perfect). I find it useful to make readings in 5% intervals up to 30%, every 10% from then on, and finally at 90%, 95%, and 100%. When done there will be two columns of paired numbers that will look something like Figure H. These number pairs describe a curve that shows how the image goes from pure white to pure black. On the original step tablet file Input equaled Output which means the midtones are linear. On the scanned step tablet print Input will almost never be the same as Output since most photo emulsions respond to UV light in a nonlinear, S-shaped fashion. The number pairs in the Input/Output table just created will correct this situation and completely linearize print midtones for this particular photo process.
  12. It is easy to make a correction curve from the number pairs in the Input/Output table (that is what all computer guys say just before pushing you into the deep end of the pool). Go to the top of the table, cross out Input and relabel it Output (this operation is shown in Figure H). Likewise, cross out Output and relabel it Input. Voilà! These are the number pairs needed to construct the correction curve.
  13. To use these number pairs, open any image file in Photoshop in order to access the Curves dialog box (with an image file open, go to Image/Adjustments/Curves).
  14. Toward the bottom of the dialog box, click on the button beside Pigment/Ink%. Now, go up to the diagonal line in the Curves box and click anywhere on the line to place an active point (this is shown in Figure I). When this is done two more boxes will appear, labeled Input and Output.
  15. Go to the Input/Output numbers (relabeled to describe a correction curve) and type in the first pair of numbers. The active point will move to the correct position.
  16. Now add another active point, above the first point, and type in the next number pair. And so forth until all points for the entire correction curve have been added. Note: Photoshop only allows 16 points on the curve, so choose points where they really seem needed to define the curve (in the middle not so many points are needed). And Photoshop will not insert points that are less than 2% apart, so choose further spaced points. Remember that the real correction curve never dips down (it will always ascend) and will not have jagged dips and rises. It is quite acceptable to look at the finished curve and manually correct it to a smooth, reasonable curve.
  17. Once the curve is constructed, click on the stacked lines in the upper right corner and choose Save Preset. Name the curve and choose a place to save it. A good suggestion is to make one folder to house all curves.

Final notes to this 3-step system

It is not necessary to go through all three steps every time. Step 1 is necessary to establish a Basic Exposure Time. It is almost always necessary to go through Step 2 and adjust the contrast of the image. Step 3 may not be needed. For several processes that utilize a low contrast negative (ie, gum, casein, cyanotype) quite acceptable results can be obtained by just going through Steps 1 & 2 and skipping Step 3. Try it and see. However, for processes that need a higher contrast negative (examples are platinum/palladium, salt, and ziatype) without a midtone correction curve shadows will be much too dark and blocked up while highlights will be washed out.

Monochrome digital negative

  1. If the image is in color, convert it to black and white. The most flexible way to do this is to go to Image/Adjustments/Black&White. Play with the sliders until the desired look is achieved and click OK.
  2. Even though the image is now monochrome, it is still in RGB mode. Go to Image/Mode and select Grayscale.
  3. Be sure the image has gamma 2.2 embedded in it (the grayscale equivalent of Adobe RGB (1998)). Go to Edit/Convert to Profile (NOT Assign Profile) and choose Grey gamma 2.2 as the destination space. If, eventually, Step 3 of this digital negative workflow is done, the digital step tablet has gamma 2.2 embedded in it. It is important to be consistent and have the same profile embedded both in the image file and in the step tablet used to calibrate the overall process. Flatten the image if it is not already (Layer/Flatten Image).
  4. Apply a Correction Curve to the positive image that was derived from Step 3 of the Digital Negative Workflow. This will be done only if Step 3 has been found to be necessary. First open the Curves dialog box (Image/Adjust/Curves). Click on the upper right stacked lines and choose Load Preset. A window will open. Find where the correction curve is stored and click on it to open and hit OK in the Curves window. The correction curve will be applied to the positive image file and the Curves window will close (the image file will also start to look rather weird because the correction curve distorts it).
  5. Go to Image/Image Size. Set resolution to 360 ppi and size the image to the final print size.
  6. Invert to negative (Image/Adjustments/Invert) being sure to invert the image layer and not the curve layer. The image should now only have two layers, the image itself and the curve layer.
  7. Flip the image horizontally (Image/Image Rotation/Flip Horizontal) Flipping the image ensures that left and right handedness will remain correct when the ink side of the negative is placed against the emulsion side of the paper during print exposure. Now the image is ready to print.
  8. Print out a negative using all the printer settings previously described, including the correct Color Density contrast setting.

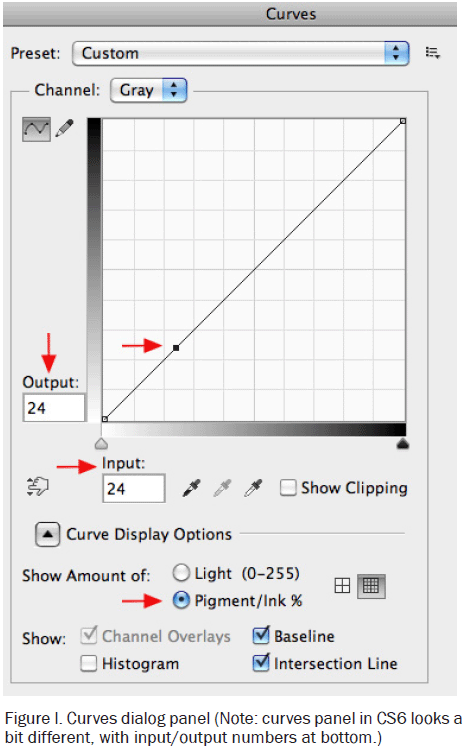

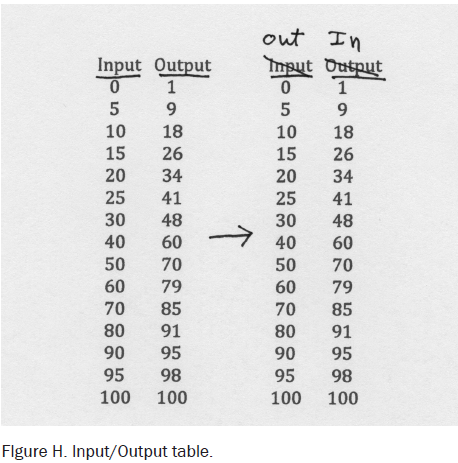

Figure G, Scanner Histogram Figure H, Input/Output Table Figure I, Curves - Dialog Panel

Tricolor RGB negatives

  1. Start with a color digital image that has been edited and is in Adobe RGB (1998) and 16 bit depth.
  2. Flatten the image to a single layer, then size it to 360ppi and the correct dimensions.
  3. Invert the sized image to negative (Image/Adjustments/Invert).
  4. Save at this step since the next step cannot be undone.
  5. Go to Window/Channels. This will open the Channels panel. In the upper right corner, click on the small stack of lines to open the Channel Options window. Scroll down and select Split Channels. This will cause the color image to disappear and be replaced by three grayscale images, one for the Red, one for the Green, and one for the Blue channel.
  6. Rename the Red separation as imagename_BLUEneg.psd, the Green separation as imagename_MAGENTAneg.psd, and the Blue separation as imagename_YELLOWneg.psd. Make a practice of also marking each negative as it comes out of the printer as Blue, Magenta, or Yellow since they look nearly identical.
  7. Be sure that each negative file has Gray gamma 2.2 embedded in it (Edit/Convert to Profile/Select Gray Gamma 2.2 as the Destination Space).
  8. At this point there are two options. If the correct negative contrast has already been determined the negatives can be printed in the gum layer of choice at the Basic Exposure Time determined in Step 1 of the 3-step method and the Printer Settings determined in Step 2, including the correct Color Density setting for contrast.
  9. On the other hand if more fine-tuning of the midtones is necessary, a midtone correction curve as described in Step 3 will be necessary, but when applied to the RGB separations, it must be applied to the positive. Since at this point the RGB splits are negative, it is necessary to invert each file back to positive, apply the correction curve, then re-invert to negative. Be sure to invert the image, not the curve. Print the corrected negative using the Exposure and Printer Settings determined in Steps One and Two.


Can’t see the print options shown in figure B? No worries, newer mac operating systems have loaded an air print driver in your system, restricting access to certain options. To regain access, follow these steps: From System Preferences, select Printers and Scanners. Delete your printer. Now click Add Printer or Scanner. Click the + sign in the lower left corner. A box will pop up with printer names. From the list, select your printer. Under NAME: the name of the printer will appear. Under USE: you will see Secure Airprint. From that drop down, select your printer name. Close the box. You are now set.
