PLEASE NOTE: This item is not eligible for International Orders. International orders placed for this item will be canceled.
***PLEASE NOTE: THIS PRINTER DOES NOT COME WITH STARTER INK. YOU MUST BUY A FULL SET OF INK TO OPERATE PRINTER.***

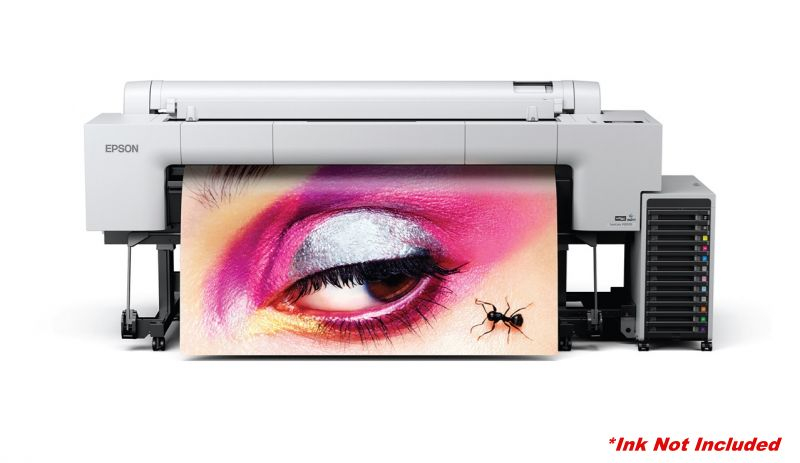

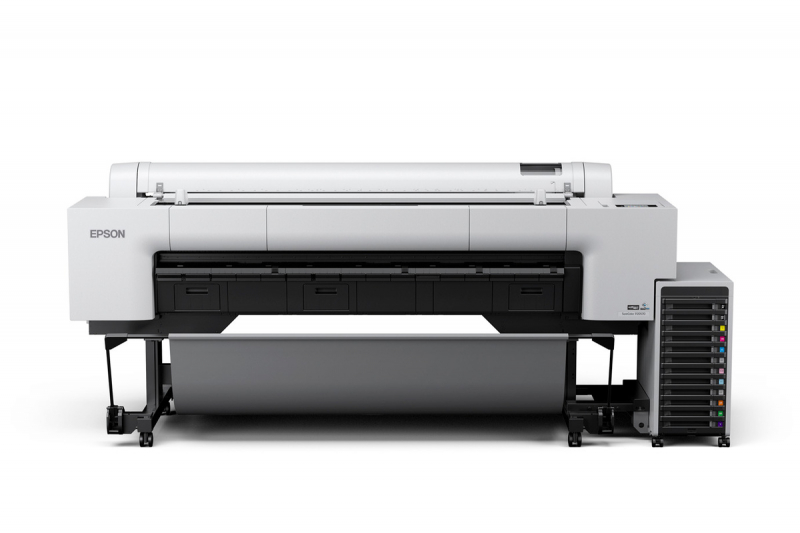

The Epson SureColor® P20570 64" Wide Format Inkjet Printer is the successor to one of the most widely used fine art printers ever developed – the Epson SureColor® P20000. The new P20570 uses 12, 1.6L ink bags (not included) instead of smaller, bulkier cartridges. This reduces plastic waste while offering the lowest cost, per ml, of any wide format fine art inkjet printer.
The Art of Performance
The SureColor® P20570 redefines large-format 64" production and fine art printing. From professional photography to fine art reproductions to graphic design, this advanced printer represents the pinnacle of professional printing technology for the demanding needs of multiple markets. It combines a high performance 12-channel PrecisionCore® Micro TFP® printhead with Nozzle Verification Technology and UltraChrome® PRO12 Ink—including Orange, Green and Violet—in a high-capacity 1.6 L ink pack system, for the widest color gamut in its class1 and industry-leading print permanence2.
With extensive media support, the SureColor P20570 produces exhibition-quality prints at exceptional speeds of 200 ft2/hr3. In addition, powerful management tools to streamline production are standard in the SureColor P20570, including Epson Edge® Print Pro RIP software—with an Adobe® PostScript® 3™ based engine—Epson Media Installer® and Epson Cloud Solution PORT®4.
Features:
- Advanced printhead design — 12-channel PrecisionCore® Micro TFP® printhead includes Nozzle Verification Technology for automated printhead maintenance
- Widest color gamut in its class — UltraChrome® PRO12 Ink with Orange, Green and Violet delivers an exceptionally wide range of colors, with up to 99 percent coverage of the PANTONE® PLUS FORMULA GUIDE solid-coated standard
- Improved workflow efficiency — high-capacity 1.6 L ink pack system eliminates the need for frequent cartridge changes and uses up to
90 percent less plastic vs. cartridges3 - Industry-leading print permanence — creates prints that last up to 200 years in color and 400 years in black-and-white4
- Remarkable productivity — photographic print-quality speeds of 200 ft2/hr5
- Intuitive operation — large 4.3" color LCD touchscreen allows for complete system control
- Black Enhance Overcoat technology — improved Dmax on glossy media
- Fast printer operation — high-speed system on a chip (SoC) helps enable fast printer operation and reduces spooling for a fast print start
- Extensive media handling — compatible with a wide variety of photographic and fine art roll media, sheet media and rigid boards up to 1.5 mm thick
- Advanced software support — includes Epson Cloud Solution PORT®6 for remote monitoring and fleet management, as well as Epson Media Installer® and Epson Edge® Print Pro software for workflow and media management
- Designed for use exclusively with Epson ink packs*.
Specifications:
- Print
- Printing Technology: PrecisionCore Micro TFP printhead featuring Nozzle Verification Technology and variable-sized droplet control
- Ink Type: UltraChrome PRO12 aqueous pigment ink; 12-color ink set
- Ink Colors: PK, C, VM, Y, Lc, Lm, GY, MK, LG, Or, Gr, Vi
- Nozzle Configuration: 9,600 nozzles (800 nozzles x 12 colors)
- Maximum Resolution: 2400 X 1200 dpi
- Minimum Ink Droplet Volume: 3.5 picoliters
- Print Speeds:
- Draft mode: 1,314 sqft/hr
- Photo-quality: 200 sqft/hr
- Printer Language/Drivers:
- Standard: Epson ESC/P® raster photographic drivers
- Optional Expansion Unit: Adobe® PostScript® 3, Adobe PDF 1.7
- Memory: 6GB
- Epson Replacement Ink Packs:
- Ink packs are not included and must be purchased separately to initialize the printer. ← PLEASE NOTE
- 1.6 L per color x 12 colors total (ink sold separately)
- Ink Pack Fill Volume: 1.6 L per color available x 12 colors total
- This printer is designed for use with Epson genuine packs and ink only, not third-party packs or ink.*
- Media Handling
- BorderFree® Sizes: 64", 60", 54", 44", 40.5", 36", 33.1", 28.7", 24", 23.4", 20", 17", 16", 13", 11.8", 10"
- Maximum Printable Length: 298 feet
- Maximum Reel Diameter: 7.48" with Auto Take-Up Reel Unit option
- Maximum Reel Weight: 52 lb with Auto Take-Up Reel Unit option
- Maximum Roll Diameter: 6.69"
- Maximum Roll Weight: 52 lb
- Roll Paper Thickness: 0.08 mm to 1.5 mm
- Roll Paper Width: 10" to 60"
- Roll Paper Remaining: Barcode management
- Minimum Margins (Roll Paper)
- With border: 3 mm top/left/right margins, 14 mm bottom margin
- BorderFree: 0 mm top/left/right/bottom margins
- Minimum Margins (Cut Sheet)
- With border: 3 mm top/left/right margins, 14 mm bottom margin
- BorderFree: 3 mm top, 14 mm bottom, 0 mm left/right margin
- Paper Feed Method: Friction Feed
- Paper Path: Roll (single roll); Cut sheet (manual feed); Posterboard (manual feed)
- Paper Thickness (Manual) Cut sheet: 0.08 mm to 0.8 mm; Posterboard: 0.8 mm to 1.5 mm
- Paper Width (Cut Sheet) 8.27" to 44"
- Printer Interfaces
- SuperSpeed USB, 100Base-TX/1000Base-T; Optional 960GB SSD HD with encryption function
- Operating Systems Supported
- Mac® OS X® 10.9.5 or later, macOS® 10.12 - 10.15, 11 or later
- Windows® 11, Windows 10, Windows 8.1, Windows 8, Windows 7,
- Windows Server® 2022/2019/2016/2012 R2/2012/2008 R2/2008
- Available Software
- Software and Firmware Updaters, Epson Cloud Solution PORT, Epson Edge Color, Epson Print Layout, Epson Media Installer; Windows - Install Navi, Web Installer, LFP Accounting tool; Web Installer, Epson Software Updater, Uninstaller
- General
- Weight and Dimensions (W X D X H)
- 107.9" x 38.5" x 45.1" (Printing)
- 107.9" x 29.9" x 45.1" (Stowed)
- Weight: 494 lb
- Acoustic Noise Level
- Sound Power Level: Not greater than 7 B(A)
- Sound Pressure Level: Not greater than 55 dB(A)
- Temperature
- Operating: 50 ̊F to 95 ̊F (10 ̊C to 35 ̊C)
- Storage: -4 ̊F to 104 ̊F (-20 ̊C to 40 ̊C)
- Relative Humidity
- Operating: 20% – 80% (no condensation)
- Storage: 5% – 85% (no condensation)
- Standards and Approvals
- NRTL Certified CSA/UL 62368-1 (United States and Canada)
- Compliant with Class A requirements USA (FCC), Canada (ICES-003)
- Electrical Requirements
- Voltage: AC 100 V – 240 V
- Frequency: 50 Hz – 60 Hz
- Rated Current: AC 100 V – 240 V (3.4 A-1.6 A)
- Power Consumption
- Operating: Approx. 95 W
- Standby: Approx. 0.3 W
- Ready: Approx. 40 W
- Sleep: Approx. 2.2 W
- Country of Origin: China
- Eco Features
- ENERGY STAR® qualified
- RoHS compliant
- End-of-life options available
- Epson America, Inc. is a SmartWay® Transport Partner
- What’s Included
- SureColor P20750 Printer, Stand, Paper Basket, Roll Rests, AC Power Cable, Roll Adapter (x2), Epson Edge Print Pro, Setup Guide, Preinstalled Maintenance Boxes (x3), Additional Maintenance Boxes for Ink Initialization (x2), Dust Cover, Cleaning Supplies; Bulk Ink Delivery System (in a separate box)
- Note: Ink and Media are not included with the printer.← PLEASE NOTE
- Ordering Information
- SureColor P20570 with Bulk Ink Delivery System SCP20570SE
- Maintenance Tank T619300
- Replacement Printer Cutter Blade C13S210040
- Cleaning Sticks C13S090013
- Adobe PostScript 3 Expansion Unit C12C939191
- Automatic Take-Up Reel System C12C932201
- Additional Roll Media Adapters (pair) C12C932231
- 960GB SSD Storage Drive C12C936671
- UltraChrome PRO12 Ink (1.6 L)
- Photo Black T56E120
- Cyan T56E220
- Vivid Magenta T56E320
- Yellow T56E420
- Light Cyan T56E520
- Vivid Light Magenta T56E620
- Gray T56E720
- Matte Black T56E820
- Light Gray T56E920
- Orange T56EA20
- Green T56EB20
- Violet T56ED20
- Limited Warranty and Service
- Warranty One-year limited in the U.S. and Canada
- Service On-Site usually Next Business-Day13; toll-free telephone support, Monday through Friday
- Epson PreferredSM Plus Extended Service Plans
- Available only at the time of hardware purchase, for up to a total of 5 years of continuous coverage.
- 1-Year Next-Business-Day On-Site Repair13 PSP20570S1
- 2-Year Next-Business-Day On-Site Repair13 PSP20570S2
- 4-Year Next-Business-Day On-Site Repair13 PSP20570S4
Specifications and terms are subject to change without notice. EPSON, Epson Cloud Solution PORT, Epson Edge, Epson Media Installer, ESC/P, PrecisionCore, SureColor, TFP and UltraChrome are registered trademarks of Seiko Epson Corporation. BorderFree is a registered trademark and Epson Preferred is a trademark of Epson America, Inc. Adobe, the Adobe logo, and Acrobat are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. Mac, macOS and OS X are trademarks of Apple Inc., registered in the U.S. and other countries. Windows and Windows Server are trademarks of the Microsoft group of companies. PANTONE and other Pantone trademarks are trademarks or registered trademarks of Pantone LLC in the United States and/or other countries. PANTONE trademarks used under license agreement between Pantone LLC and Seiko Epson Corporation. All rights reserved. SmartWay is a registered trademark of the U.S. Environmental Protection Agency. All other product and
brand names are trademarks and/or registered trademarks of their respective companies. Epson disclaims any and all rights in these marks.
Copyright 2024 Epson America, Inc. CPD-64519 5/24
* This product uses only genuine Epson-brand ink packs. Other brands of ink packs and ink supplies are not compatible and, even if described as compatible, may not function properly or at all.
